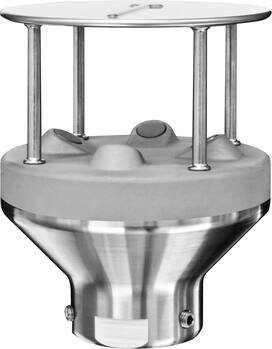

Wind measuring technology Ultrasonic Anemometer WP

  • Description
  • Specification
  • Versions
  • Accessories
  • Further information
  • PDF
Part number: 4.388x.xx.xxx
It has been developed especially for the application in harsh environments, and is eminently
suited for the use on wind power plants thanks to the compact construction and low weight.
The serial or analogue output of the data occurs optionally as instantaneous value or as moving average value with settable time frame.
If necessary, the instrument is automatically heated at critical ambient temperatures. The risk of malfunction by freezing is thus minimized. The ultrasonic transducers are heated, as well as all essential housing components.
4.388x.xx.xxx_E

Specification


Part number: 4.388x.xx.xxx

4.388x.xx.xxx_E
No specification is available for this product.

Versions


As per 4.388x.xx.xxx, but:

4.388x.xx.xxx_E
Product number 4.3882.00.000
Data output digital
Protocol
ASCII
General
Mounting
on a mast tube Ø 34mm
Weight
0.9 kg
Product number 4.3882.00.001
Data output digital
Protocol
MODBUS
General
Mounting
on a mast tube Ø 34mm
Weight
0.9 kg
Product number 4.3883.00.000
Data output digital
Protocol
ASCII
General
Mounting
on a mast tube Ø 50mm
Weight
1.1 kg
Product number 4.3883.00.001
Data output digital
Protocol
MODBUS
General
Mounting
on a mast tube Ø 50mm
Weight
1.1 kg

Accessories


Product
Product name
Product name / Brief description
noimg

Connecting cable

50775x

Connecting cable


Suitable cable for 4.3820/30/75/80/81

• length: see versions

General
Cable length
see versions
Cable
PUR 4 x 0,75 +2x2x0,14 mm²

Further information




Catalogs
Catalog PrecipitationCatalog RadiationCatalog Temperature, Pressure, HumidityCatalog Temperature, Pressure, Humidity


Contact
Phone: +49 551 / 79001-0
Fax: +49 551 / 79001-65
info@thiesclima.com

Inquiry / Message

Please use the form below for your inquiry or message.


Ultrasonic Anemometer WP (4.388x.xx.xxx)
