Wind Transmitter compact

Part number: 4.3619.00.xxx

  • Description

    4.3518.00.000
    • analog output

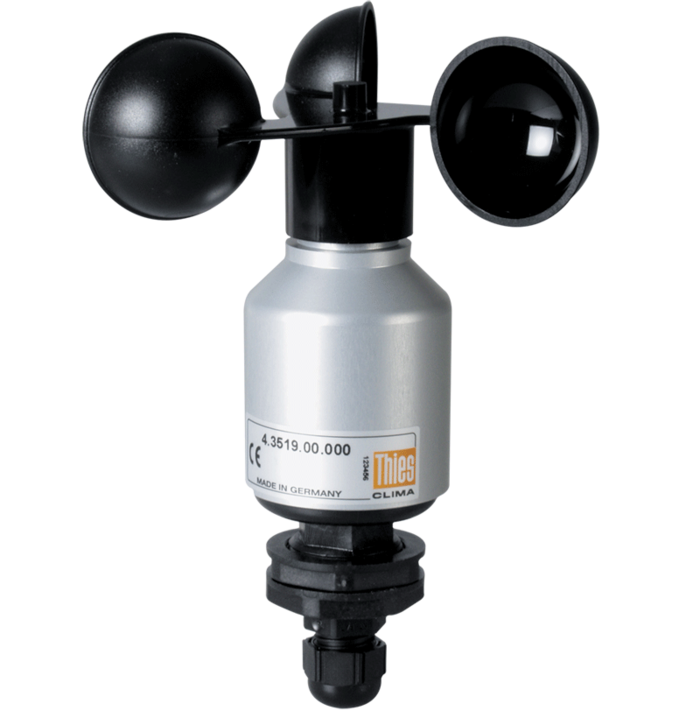

    Measuring transmitter for the measurement of the horizontal wind velocity with analog output. Suitable for data loggers.
    The cup-star consists of plastic, the housing is made of anodised aluminium and plastic. The instrument has a threaded pin PG 21 with 2 nuts for mounting.

  • Specification

    Wind speed
    Measuring range
    see model
    Resolution
    < 0.1 m/­s
    Accuracy
    ±3 % of meas. value or ± 0.5 m/­s
    Operating voltage
    Current consumption
    50 mA
    Heating
    24 V AC/­DC, max 20 W
    General
    Ambient temp.
    -40 ... +70 °C
    Electr. connection
    12 m cable, LiyCY
    5 x 0.25 mm²
    Protection
    IP 55

  • Versions


    4.3518.00.000
    Product number 4.3619.00.140
    Wind speed
    Measuring range
    0.5 ... 60 m/­s
    Data output analog
    Wind speed
    0 ... 20 mA
    Stromausgang
    max. 500 ê
    Operating voltage
    Electronic
    13 ... 30 V DC or
    24 V AC
    General
    Electr. connection
    12 m cable, LiyCY
    5 x 0.25 mm²
    Dimension
    Ø 135 x 165 mm
    Weight
    0.75 kg
    Product number 4.3619.00.141
    Wind speed
    Measuring range
    0.5 ... 60 m/­s
    Data output analog
    Wind speed
    4 ... 20 mA
    Stromausgang
    max. 500 ê
    Operating voltage
    Electronic
    13 ... 30 V DC or
    24 V AC
    General
    Electr. connection
    12 m cable, LiyCY
    5 x 0.25 mm²
    Dimension
    Ø 135 x 165 mm
    Weight
    0.75 kg
    Product number 4.3619.00.161
    Wind speed
    Measuring range
    0.5 ... 60 m/­s
    Data output analog
    Wind speed
    0 ... 10 V
    Stromausgang
    min. 1 kê
    Operating voltage
    Electronic
    13 ... 30 V DC or
    24 V AC
    General
    Electr. connection
    12 m cable, LiyCY
    5 x 0.25 mm²
    Dimension
    Ø 135 x 165 mm
    Weight
    0.75 kg
    Product number 4.3619.00.167
    Wind speed
    Measuring range
    0.5 ... 60 m/­s
    Data output analog
    Wind speed
    0 ... 2 V
    Stromausgang
    min. 1 kê
    Operating voltage
    Electronic
    9 ... 30 V DC or
    24 V AC
    General
    Electr. connection
    12 m cable, LiyCY
    5 x 0.25 mm²
    Dimension
    Ø 135 x 165 mm
    Weight
    0.75 kg
    Product number 4.3619.00.741
    Wind speed
    Measuring range
    0 ... 60 m/­s
    Data output analog
    Wind speed
    4 ... 20 mA
    Stromausgang
    max. 500 Ω
    Operating voltage
    Electronic
    13 ... 30 V DC or
    24 V AC
    General
    Electr. connection
    7- pole plug
    Dimension
    Ø 135 x 225 mm
    Weight
    0.4 kg
    Product number 4.3619.00.761
    Wind speed
    Measuring range
    0 ... 60 m/­s
    Data output analog
    Wind speed
    0 ... 10 V
    Stromausgang
    min. 1 kΩ
    Operating voltage
    Electronic
    13 ... 30 V DC or
    24 V AC
    General
    Electr. connection
    7- pole plug
    Dimension
    Ø 135 x 225 mm
    Weight
    0.4 kg
    Product number 4.3619.00.740
    Wind speed
    Measuring range
    0 ... 60 m/­s
    Data output analog
    Wind speed
    0 ... 20 mA
    Stromausgang
    max. 500 ê
    Operating voltage
    Electronic
    13 ... 30 V DC or
    24 V AC
    General
    Electr. connection
    7- pole plug
    Dimension
    Ø 135 x 225 mm
    Weight
    0.4 kg
    Product number 4.3619.00.173
    Wind speed
    Measuring range
    0.5 ... 60 m/­s
    Data output analog
    Wind speed
    0 ... 5 V
    Stromausgang
    min. 1 kê
    Operating voltage
    Electronic
    9 ... 30 V DC or
    24 V AC
    General
    Electr. connection
    12 m cable, LiyCY
    5 x 0.25 mm²
    Dimension
    Ø 135 x 165 mm
    Weight
    0.75 kg

  • Accessories

    Product
    Product name
    Product name / Brief description
    4.3171.25.000

    Traverse compact for wall mounting

    4.3171.2x.000

    Traverse compact for wall mounting


    For storefront mounting of a measuring value transmitter.

    General
    Material
    Aluminium
    Show more
    4.3171.30.000

    Traverse for Wind Transmitters Compact

    4.3171.3x.000

    Traverse for Wind Transmitters Compact


    For mounting the wind transmitter and wind direction transmitter jointly onto a mast.

    Material
    Traverse
    aluminium (AlMgSi0.5)
    Gripping clamb
    stainless steel
    General
    Sensor distance horizontal
    0.8 m
    Weight
    0.35 kg
    Mounting
    hole Ø 29 mm
    Show more
    4.3171.40.000

    Traverse short for Wind Transmitters Compact

    4.3171.4x.000

    Traverse short for Wind Transmitters Compact


    For mounting one wind transmitter or wind direction transmitter at a mast.

    Material
    Traverse
    aluminium (AlMgSi0.5)
    Gripping clamb
    stainless steel
    General
    Sensor distance horizontal
    0.4 m
    Weight
    0.3 kg
    Mounting
    hole Ø 29 mm
    Show more
    506347

    Holder compact

    506347

    Holder compact


    The holder serves for the mounting of a wind transmitter, Compact-type, onto an instrument carrier or mast.

    General
    Mounting
    for mast tubes Ø 35 ... 50 mm
    Material
    stainless steel (V2A)
    Dimension
    80 x 150 mm
    Weight
    0.35 kg
    Mounting
    hole Ø 32.5 mm
    Show more
