Datalogger DLN

Part number: 5.1756.00.000

  • Description

    5.1756.00.000

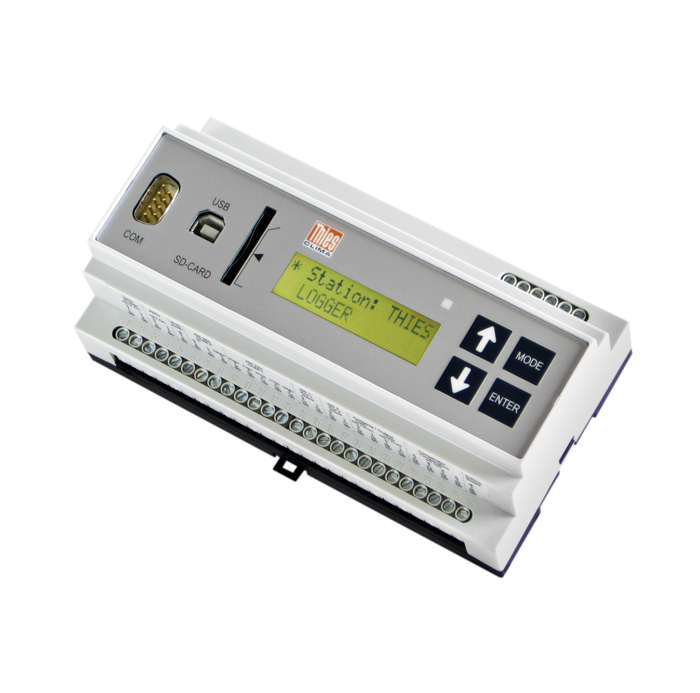

    The datalogger acquires the output pulse measurement values (0,1 mm prec/­imp.) of max. 2 precipitation transmitters as well as one temperature value from a PT100.

    It stores the data together with time and date in accordance with the set memory cycle. In addition, measuring data of an LNM (5.4110.xx.xxx) can be acquired and stored.
    The read-out of the stored data is carried out directly via the serial interface, USB, or by means of an SD-card. Date, time, station name, and memory cycle can be set via 3 keys.
    The instrument can be operated in battery-supplied mode (mains-independent). The pulses of the precipitation transmitter can be processed potential-free via opto-coupler

  • Specification

    Analogue data sampling
    A/­D - converter
    16 bit
    Accuracy
    ±0.1 % of meas. range
    Noice ratio
    yes @ 50Hz
    Precipitation
    Electrical input
    2 x Impulses
    1 x serial ( COM2 )
    Resolution
    0.1 mm
    Temperature
    Electrical input
    1 x PT100
    Measuring range
    -40 ... +70 °C
    Accuracy
    ±0,1 mK
    Rel. Humidity
    Electrical input
    1 x 0.02 ... 1 V
    Measuring range
    2 ... 100 % rel. h.
    Accuracy
    ± 0.001 % rel. h.
    Serial interfaces
    Quantity
    2
    Configuration
    COM1: RS232 or USB
    COM2: RS485 HD
    Supported devices
    COM2: LPM
    Function
    COM1: Configuration, Data access
    COM2: Sensors, Inst. data output
    Data output digital
    Output type
    2 x optokoppler ( max. 24 V, 1 mA )
    Data input digital
    Typ
    2 x impulses for precipitation
    Data management
    Measurement cycle
    1 ... 3600 s
    Memory cycle
    1 ... 60 min
    Memory capacity
    4 MByte
    Data export to SD card
    Number data records
    360448 ( 3 channels )
    163840 ( 10 channels )
    Output of archive values
    serial via COM1 (ASCII - formatted)
    Export to SD - card (ASCII - formatted)
    Operating voltage
    Electronic
    18 ... 36 V DC or
    18.5 ... 27.6 V AC
    Current consumption
    min. 0.1 mA
    max. 2.0 mA
    Battery connection
    für 12 V Battery
    Internal battery charger
    15 ... 18 V /­ max. 20 W
    General
    Ambient temp.
    -30 ... +60 °C
    Electr. connection
    clamp
    Dosplay
    LCD-Display 2 x 16 digits
    Mounting
    DIN rail
    Protection
    IP 20
    Dimension
    155 x 85 x 60 mm
    Weight
    0.7 kg

  • Versions

    No other versions of this product are available.
