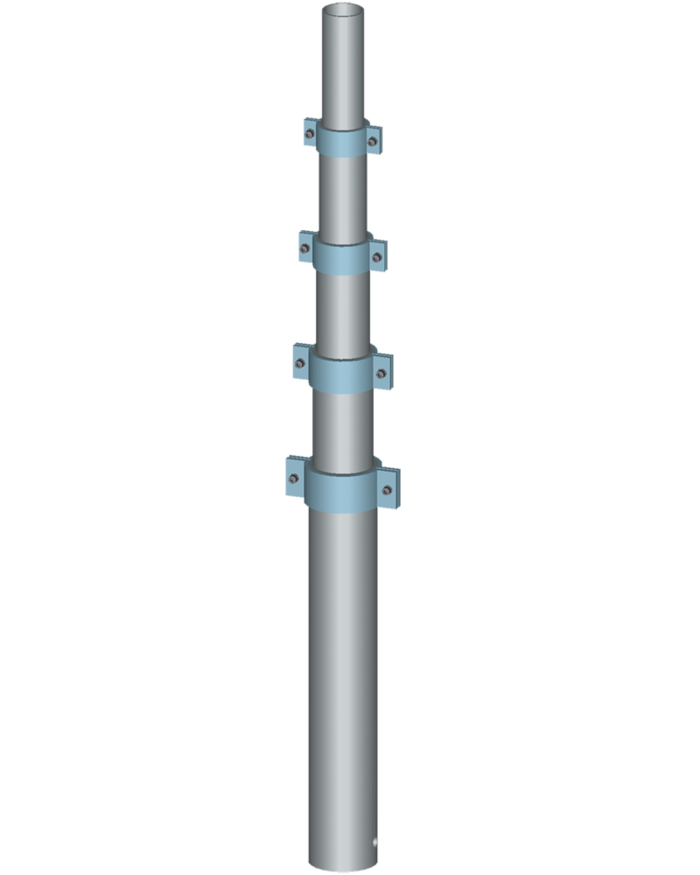

Telescopic Mast 6 m
Part number: 4.3180.30.090
-
For the mounting of meteorological measuring instruments.
This telescopic mast can be used at a wall or in the open country, in combination with a respective tilting device, without staying.
noDATA
-
General |
Length | 6 m |
Diameter | 90 / 80 / 71 mm |
Top of Mast | Ø 71 mm |
Material | Aluminium ( AlMgSi1 ) |
Weight | 16 kg |
-
No other versions of this product are available.
-
Product
Product name
Product name / Brief description
Lightning Rod
for mast tube Ø 71 mm
General |
Length | 560 mm |
Height | 1500 mm |
Mounting | at mast tube Ø 71 mm |
Material | steel, galvanised |
Weight | 4 kg |
Traverse for Wind Transmitters Compact
For mounting the wind transmitter and wind direction transmitter jointly onto a mast.
Material |
Traverse | aluminium (AlMgSi0.5) |
Gripping clamb | stainless steel |
General |
Sensor distance horizontal | 0.8 m |
Weight | 0.35 kg |
Mounting | hole Ø 29 mm |
Traverse short for Wind Transmitters Compact
For mounting one wind transmitter or wind direction transmitter at a mast.
Material |
Traverse | aluminium (AlMgSi0.5) |
Gripping clamb | stainless steel |
General |
Sensor distance horizontal | 0.4 m |
Weight | 0.3 kg |
Mounting | hole Ø 29 mm |
Traverse for Classic Wind Transmitters
Modell for
• Mounting on Ø 71 mm mast tube
General |
Mounting | on mast tube Ø 71 mm ( Ø 71 x 74 mm) |
Tilting device for 6 m mast
For field mounting on fundament
General |
Height | 1580 mm |
Material | steel, galanised |
Weight | 60 kg |
Double Hanger First Class, 2m
For mounting the wind speed transmitter and wind direction transmitter jointly onto a mast.
General |
Height | 0.63 m |
Mounting | for mast tube Ø 80 ... 132 mm |
Material | aluminium (AlMgSi0.5) |
Sensor distance horizontal | 2 m |
Sensor distance vertikal | 0.3 m |
Weight | 2.8 kg |
Mounting | Ø 34 mm for First Class wind sensors |
-
