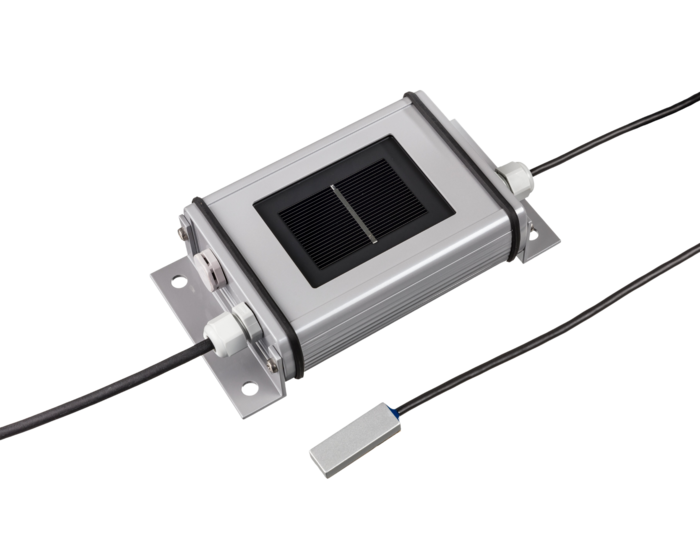

Silicon Solar Radiation Sensor
Part number: 7.1419.2x.xxx
-
Description
Digitial silicon irradiance sensor measurement uncertainty acc. IEC 61724-1:2021 class A.
Silicon PV sensor with PV module temperature sensors offer a cost-effective, robust and reliable solution for measuring solar radiation. In particular, the spectral sensitivity corresponding to the PV modules as well as the very similar incident angle modifier enable an exact analysis of PV yields using the sensor readings.Specification
RadiationMeasuring range0 ... 1500 W/m²Accuracy±1 W/m² ± 2.0 % of MW
Range 100 to 1,500 W/m²., perpendicular incidence,
Spectrum AM1.5Sensor typeMonocrystalline silicon; 50mm x 33mmTemperatureMeasuring range-40 ... +90 °CAccuracy1.0 K in the range -35 ... 80°CInterfaceOutputRS 485 - Modbus RTUGeneralPower supply24VDC (10 ... 28 VDC)Current loadTypically 25mA at 24VDCAmbient temp.-35 ... +80 °C
0 ... 100% rel. humidity, including condensationCableLiYCY 4 x 0,25 mm² - black, UV resistantProtectionIP 65DimensionØ 80 x 82 mmWeightapprox. 350 ... 470gVersions
Product number 7.1419.20.081GeneralMeasuring valueSolar irradiance incl. cell temperature sensorElectr. connection3m cableProduct number 7.1419.20.781GeneralMeasuring valueSolar irradiance incl. cell temperature sensorElectr. connectionPlugProduct number 7.1419.21.081GeneralMeasuring valueSolar irradiance incl. cell temperature and
Module temperature sensorElectr. connection3m cableProduct number 7.1419.21.781GeneralMeasuring valueSolar irradiance incl. cell temperature and
Module temperature sensorElectr. connectionPlugAccessories
No accessories are available for this product.Further information
User manualProduct informationCatalogs
