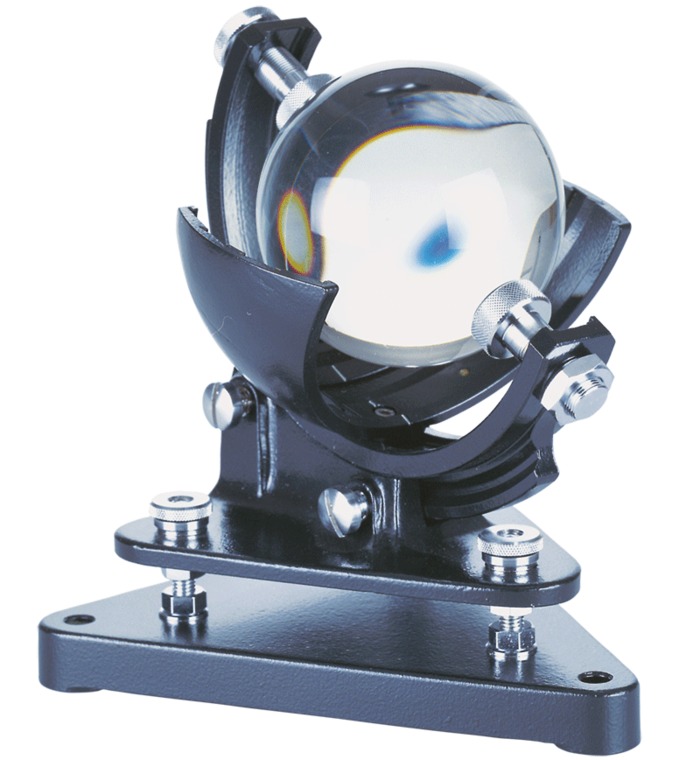

Sunshine Recorder acc. to Campbell-Stokes
Part number: 7.140x.10.000
-
Registers the sunshine duration for one entire day.
A cut glass sphere focuses the sun’s rays and leave an image line on the strip chart. The length of the image line corresponds to the duration of sunshine.
The shipment includes the following strip charts:
140 sheets for summer
140 sheets for winter
100 sheets for spring and autumn
-
General |
Application area | North. and southern
hemisphere, latitude
0 ... 40 ° |
Measuring value | Sunshine duration |
Degree of latitude | adjustable |
Period of registration | 1 day |
Dimension | 205 x 185 x 145 mm |
Weight | 5 kg |
-
Product number 7.1405.10.000
General |
Application area | North. and southern hemisphere, latitude 25 ... 60 ° |
Product number 7.1400.10.000
General |
Application area | North. and southern hemisphere, latitude 0 ... 40 ° |
-
Product
Product name
Product name / Brief description
Recording charts
for 7.1400.10.000
General |
Period of registration | 1 day |
Recording charts
for 7.1405.10.000
General |
Period of registration | 1 day |
-
Registers the sunshine duration for one entire day.
Product number 7.1405.10.000GeneralApplication areaNorth. and southern hemisphere, latitude 25 ... 60 °Product number 7.1400.10.000GeneralApplication areaNorth. and southern hemisphere, latitude 0 ... 40 °
