Small Wind Transmitter

Part number: 4.3515.5x.xxx

  • Description

    4.3515.xx.xxx

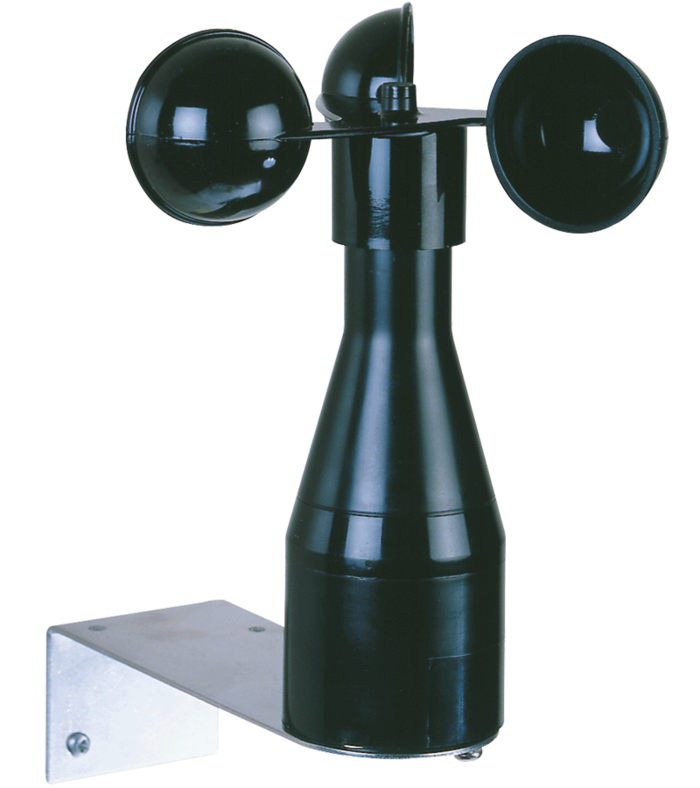

    Small Wind Velocity Transmitters with frequency output
    Measuring instrument for the direction-independent measurement of the horizontal air flow in the open. The sensor is a small construction with a Reed-contact, which is activated by the
    revolution of the cup star. The housing is made of synthetic material.

  • Specification

    Wind speed
    Measuring range
    0.9 ... 40 m/­s
    Resolution
    0.4 m wind run
    Accuracy
    ±0.5 m/­s or
    ±5 % of meas. value
    Data output digital
    Frequency
    100 Hz @ 40 m/­s
    Output type
    reed - contact
    Contact load
    10 W, max. 42 V DC, max. 0.4 A
    General
    Ambient temp.
    -25 ... +60 °C, ice-free
    Electr. connection
    3 m LiYY
    4 x 0.5 mm² o r 2 x 0.5 mm²
    Mounting
    with mounting angle
    Protection
    IP 54
    Dimension
    Ø 134 x 175 mm
    Survival speed
    max. 60 m/­s
    Weight
    0.3 kg
    Mounting
    Ø 35 x 35 mm

  • Versions


    4.3515.xx.xxx
    Product number 4.3515.51.000
    Operating voltage
    Heating
    without Heating
    General
    Electr. connection
    3 m; LiYY 4 x 0.5 mm²
    Instrument color
    white
    Product number 4.3515.51.100
    Operating voltage
    Heating
    without heating
    General
    Electr. connection
    3 m; LiYY 4 x 0.5 mm²
    Instrument color
    black
    Product number 4.3515.50.000
    Operating voltage
    Heating
    24 V DC, 24 W
    General
    Electr. connection
    3 m; LiYY 4 x 0.5 mm²
    Instrument color
    white
    Product number 4.3515.50.100
    Operating voltage
    Heating
    24 V DC, 24 W
    General
    Electr. connection
    3 m; LiYY 4 x 0.5 mm²
    Instrument color
    black

  • Accessories

    No accessories are available for this product.
