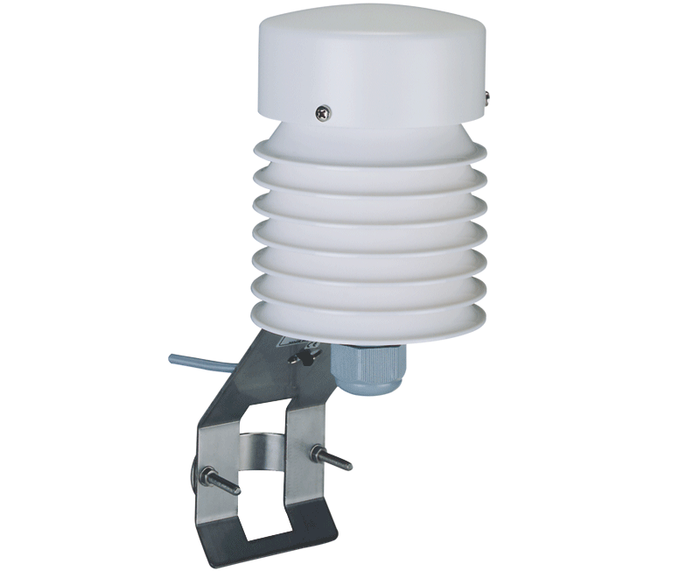

Weather and Thermal Radiation Shield, compact

Part number: 1.1025.55.100

  • Description

    1.1025.55.100
    Protective case for the preceding temperature sensor compact for outdoor installation with artificial ventilation.

    This case essentially eliminates the influence of weather and radiation errors which affect
    the measurement result.

  • Specification

    Material
    Laminations
    plastic, white
    Mast holder
    stainless stell
    General
    Power supply
    12V DC, 2 W
    Electr. connection
    5 m cable
    Mounting
    at tube Ø 35 ... 50 mm
    Dimension
    Ø 120 x 275 mm
    Weight
    0.8 kg

  • Versions

    No other versions of this product are available.

  • Accessories

    Product
    Product name
    Product name / Brief description
    506350

    Peg complete

    506350

    Peg complete


    Adapting of measuring value transmitters for traverse compact.

    General
    Material
    POM
    Dimension
    Ø 40 x 65 mm
    Weight
    0.1 kg
    Show more

  • Further information



    User manual

    Catalogs
