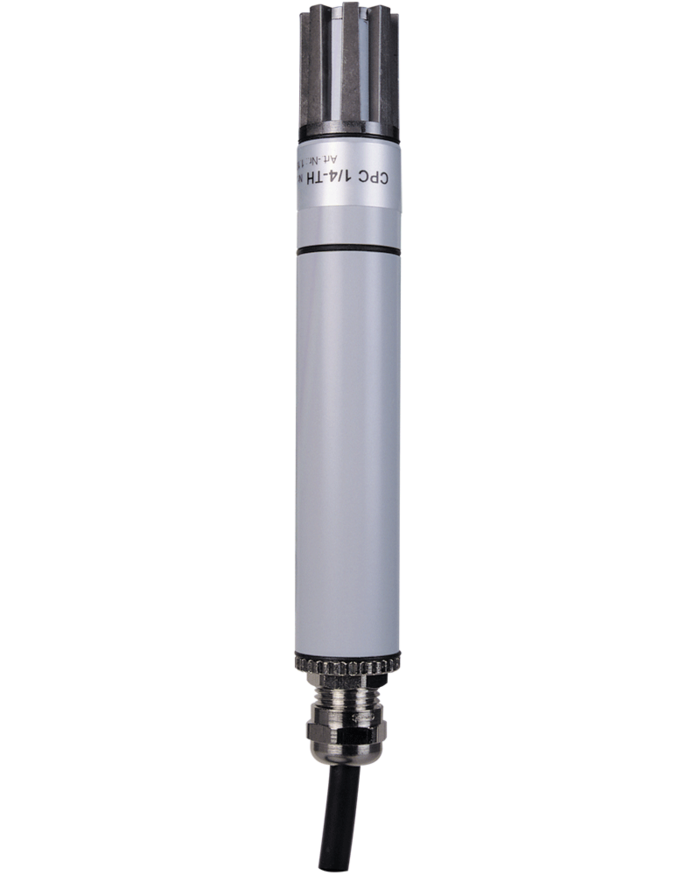

Temperature Sensor compact

Part number: 2.1280.00.000

  • Description

    2.1280.00.xxx
    Electrical measured value receiver to measure the ambient temperature.

    • PT100 - output
    The measured value is emitted as a resistance value in accordance with DIN IEC 60751 resp.
    as an analogue voltage or current signal.

  • Specification

    Temperature
    Measuring range
    -30 ... +70 °C
    Meas. element
    Pt 100 acc. to DIN IEC 60751 1/­3 class B
    Electr. output
    PT100 resistor
    Time constant
    20 s (90%)
    General
    Ambient temp.
    -40 ... +80 °C
    Electr. connection
    5 m cable
    Dimension
    Ø 20 x 138 mm
    Weight
    0.35 kg

  • Versions

    No other versions of this product are available.

  • Accessories

    Product
    Product name
    Product name / Brief description
    1.1005.54.901

    Teflonfilter with gauze ZE 20

    1.1005.54.901

    Teflonfilter with gauze ZE 20


    This hood is placed over the sensor and protects the measurement element from coarse dirt.

    1.1005.54.902

    Sinter Filter ZE 21

    1.1005.54.902

    Sinter Filter ZE 21


    This basket is placed over the sensor and protects the measurement element from high wind speed (>5 m/­s) and increased dust. A necessity for sensors in use in exposed areas, eg. in marine climates, desert, mountains.

    1.1005.54.903

    Wall Holder

    1.1005.54.903

    Wall Holder


    for mounting the temperature ( 2.1280.xx.xxx ) or hygrothermo Sensor ( 1.1005..xx.xxx ) onto a wall, radiation- and precipitationprotected use (for ex. indoor)

    General
    Clamping range
    Ø 20 mm
    Mounting
    plate with with drillings 3 x Ø 6,5 mm
    Material
    plastic, grey flange
    Dimension
    96 mm lang
    Weight
    0.075 kg
    Show more
    1.1025.55.000

    Weather and Thermal Radiation Shield, compact

    1.1025.55.000

    Weather and Thermal Radiation Shield, compact


    Protective case for the temperature and humidity sensors ( 2.1280.xx.xxx and 1.1005.54.xxx )sensor compact for outdoor installation without artificial ventilation.

    Material
    Laminations
    plastic, white
    Mast holder
    stainless stell
    General
    Mounting
    at tube Ø 35 ... 50 mm
    Dimension
    Ø 120 x 275 mm
    Weight
    0.8 kg
    Show more
    1.1025.55.100

    Weather and Thermal Radiation Shield, compact

    1.1025.55.100

    Weather and Thermal Radiation Shield, compact


    Protective case for the preceding temperature sensor compact for outdoor installation with artificial ventilation.

    Material
    Laminations
    plastic, white
    Mast holder
    stainless stell
    General
    Power supply
    12V DC, 2 W
    Electr. connection
    5 m cable
    Mounting
    at tube Ø 35 ... 50 mm
    Dimension
    Ø 120 x 275 mm
    Weight
    0.8 kg
    Show more
