Small Wind Transmitter

Part number: 4.3515.30.000

  • Description

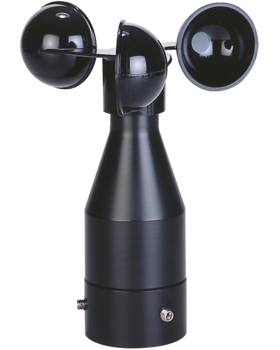

    4.3400.30.000
    Small Wind Velocity Transmitters with reed - contact

    Measuring instrument for the direction-independent measurement of the horizontal air flow in the open. The sensor is a small construction with a Reed-contact, which is activated by the
    revolution of the cup star.
    Cup star consists of fiber glass reinforced, and shaft is made of plastic. The mast boring is made of aluminum.

  • Specification

    Wind speed
    Measuring range
    0.5 ... 40 m/­s
    Resolution
    0.8 m wind run
    Accuracy
    ±0.5 m/­s or
    ±5 % of meas. value
    Data output digital
    Frequency
    50 Hz @ 40 m/­s
    Output type
    reed - contact
    Contact load
    max. 24 V
    Series resistor
    100 ê, 0.5 W
    General
    Ambient temp.
    -25 °C ... +60 °C, ice-free
    Electr. connection
    20 m LiYY
    2 x 0.25 mm²
    Mounting
    on mast tube Ø 1``
    Protection
    IP 54
    Dimension
    Ø 134 x 175 mm
    Survival speed
    max. 60 m/­s
    Weight
    0.3 kg
    Mounting
    Ø 35 x 35 mm

  • Versions

    No other versions of this product are available.

  • Accessories

    No accessories are available for this product.
